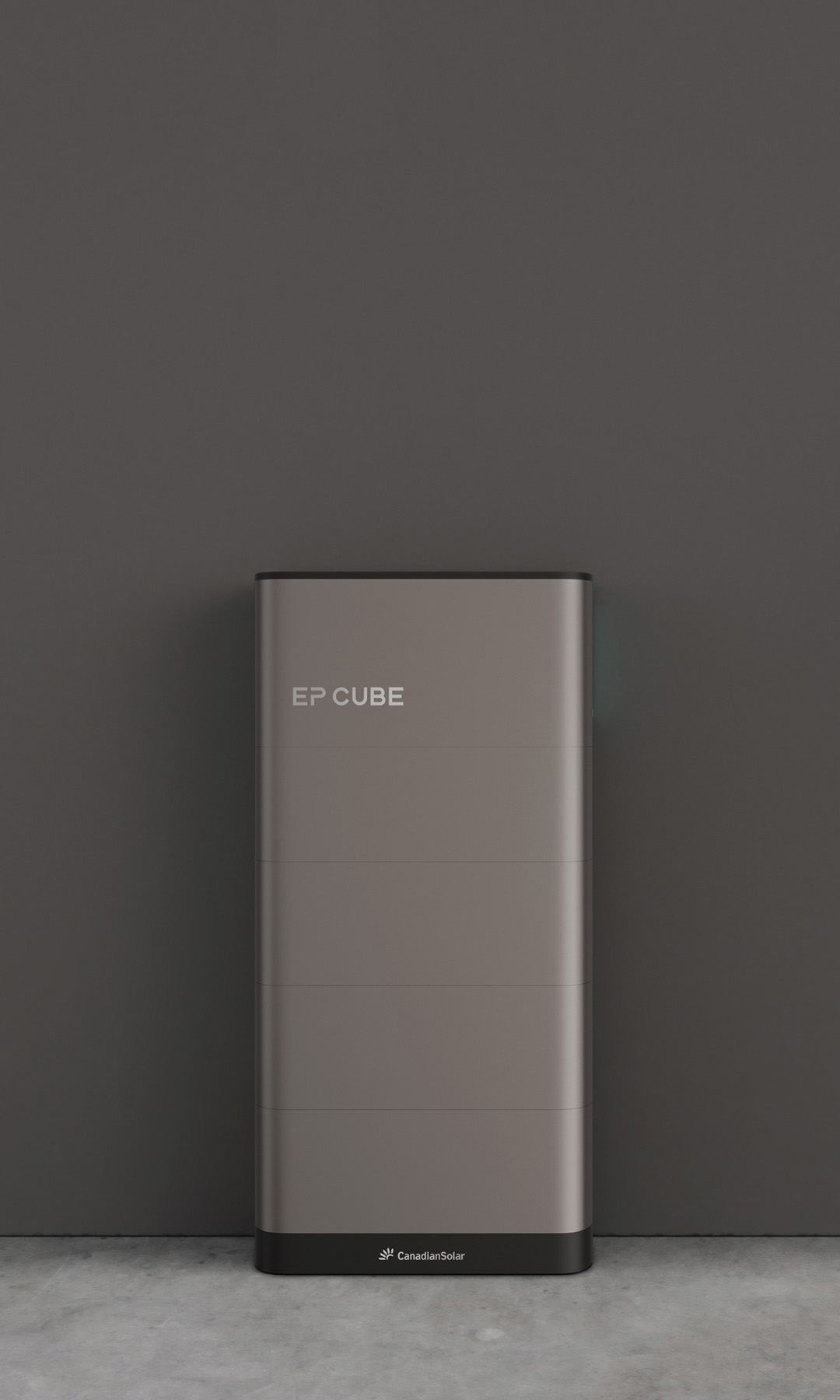

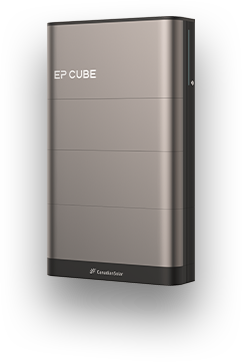

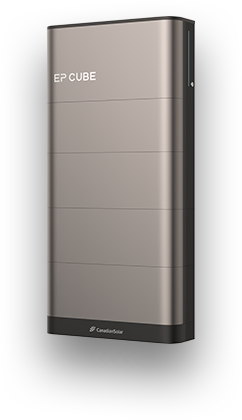

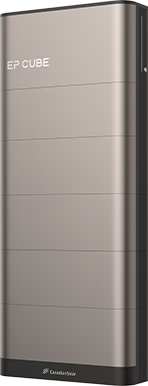

EP Cube - Residential Energy Storage System

6.6kWh

9.9kWh

13.3kWh

16.6kWh

19.9kWh

Flexible and
convenient

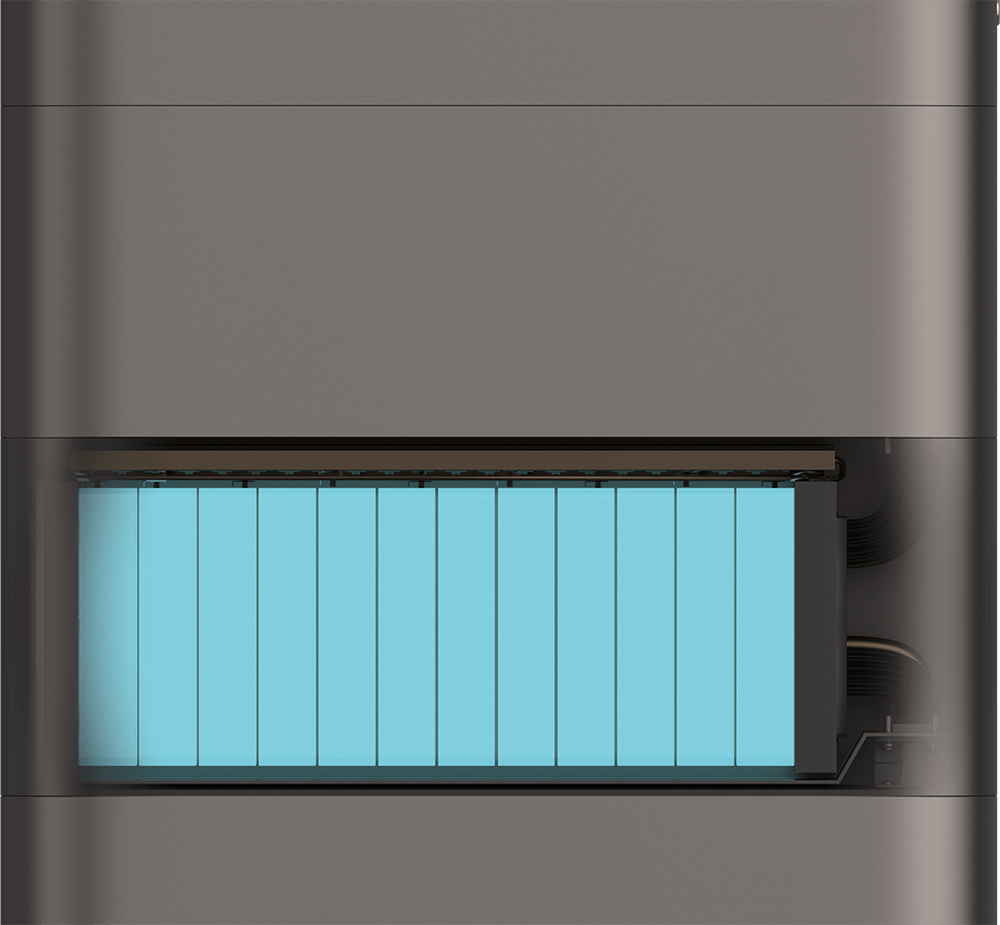

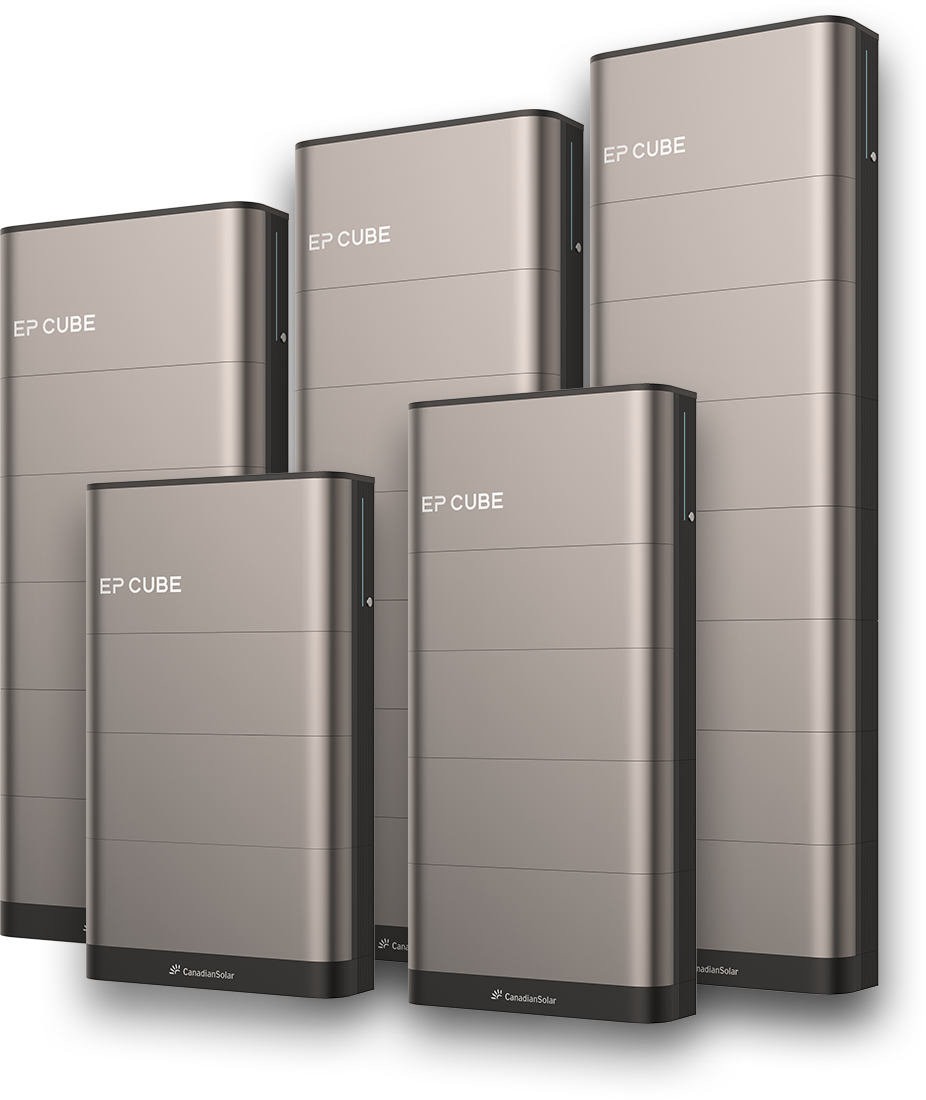

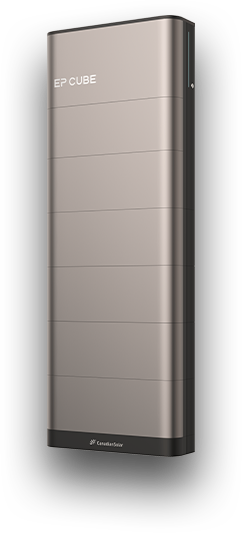

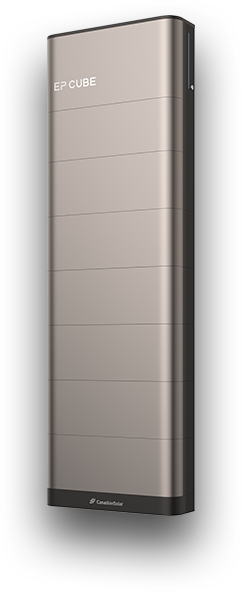

EP Cube batteries adopt modularized design. Each battery module can store 3.33kWh energy and weighs roughly 35kg, meaning easier transportation and installation. With the stackable modular design, energy capacity goes from 6.6kWh to 19.9kWh, making it versatile for a wide range of residential electricity demands.

Safe and reliable

EP Cube batteries adopts reliable lithium iron phosphate chemistry, all-in-one design with IP 65 protection, IEC certification*, along with ten year warranty. Making it safer and more reliable with multiple quality guarantees.

Safe and reliable

EP Cube batteries adopts reliable lithium iron phosphate chemistry, all-in-one design with IP 65 protection, IEC certification*, along with ten year warranty. Making it safer and more reliable with multiple quality guarantees.

Cost-
saving

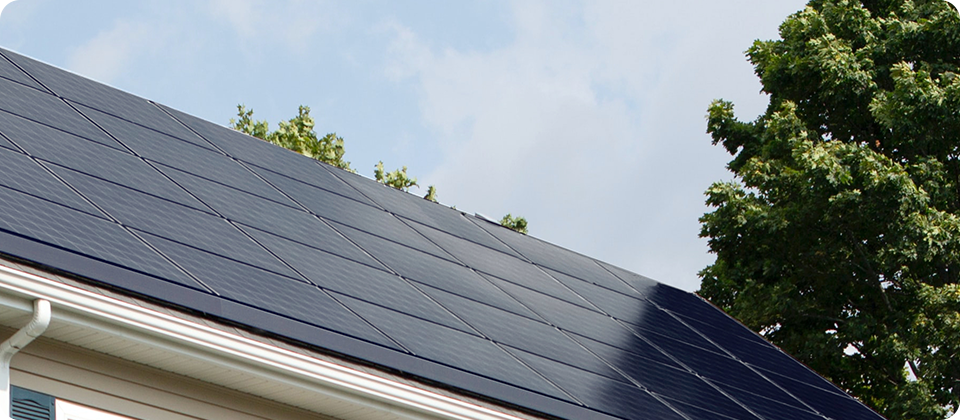

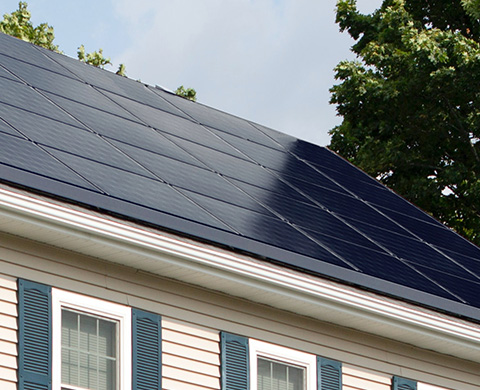

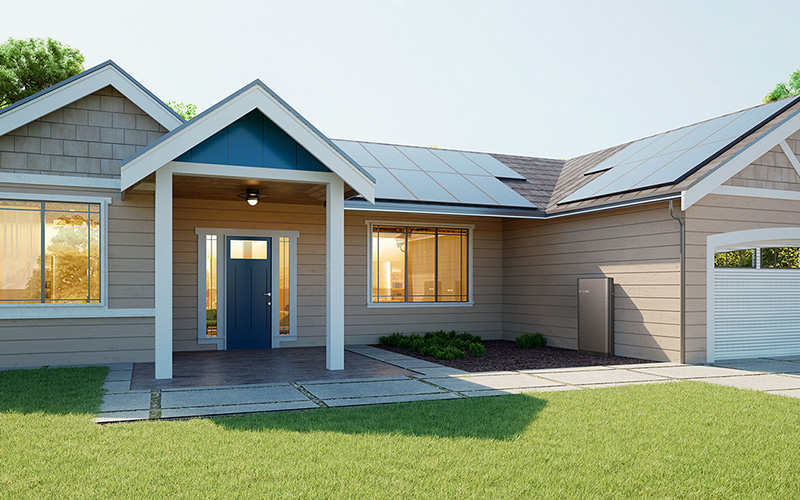

With all-in-one design, EP Cube makes big savings in terms of the time and cost of installation. The device stores and uses clean PV electric energy which reduces reliance on the grid, saving utility costs and abating carbon emissions.

Power
guarantee

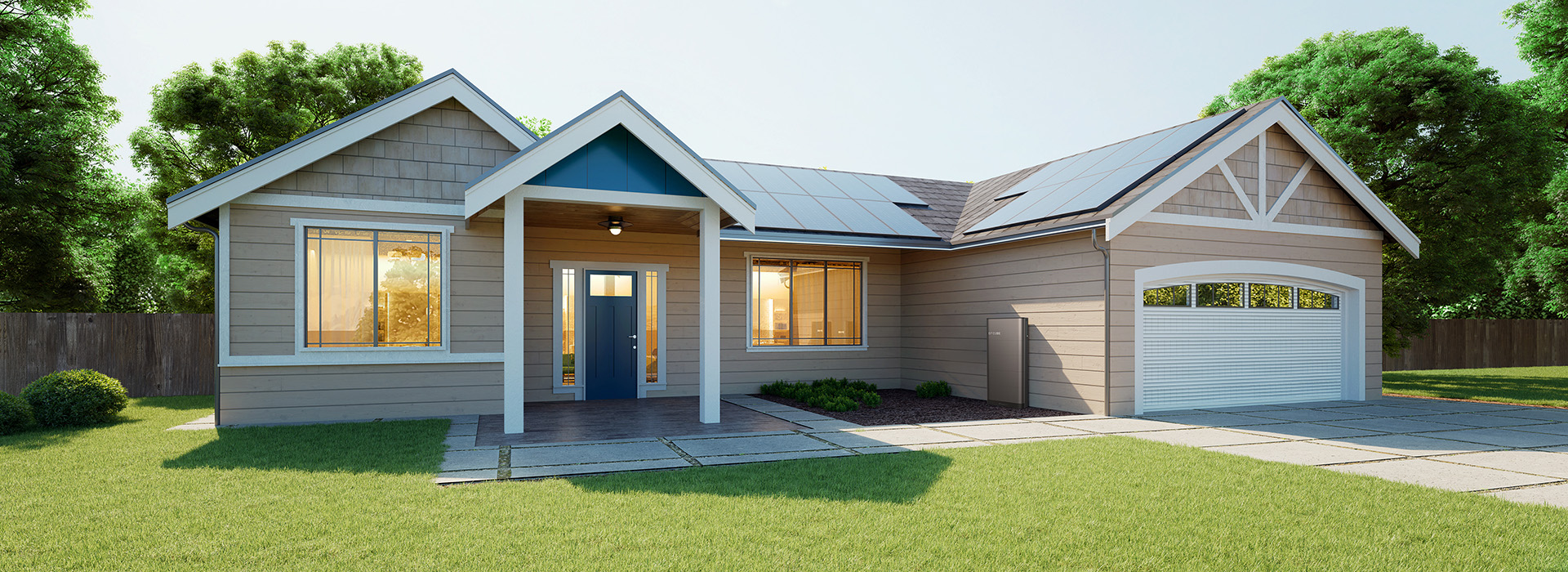

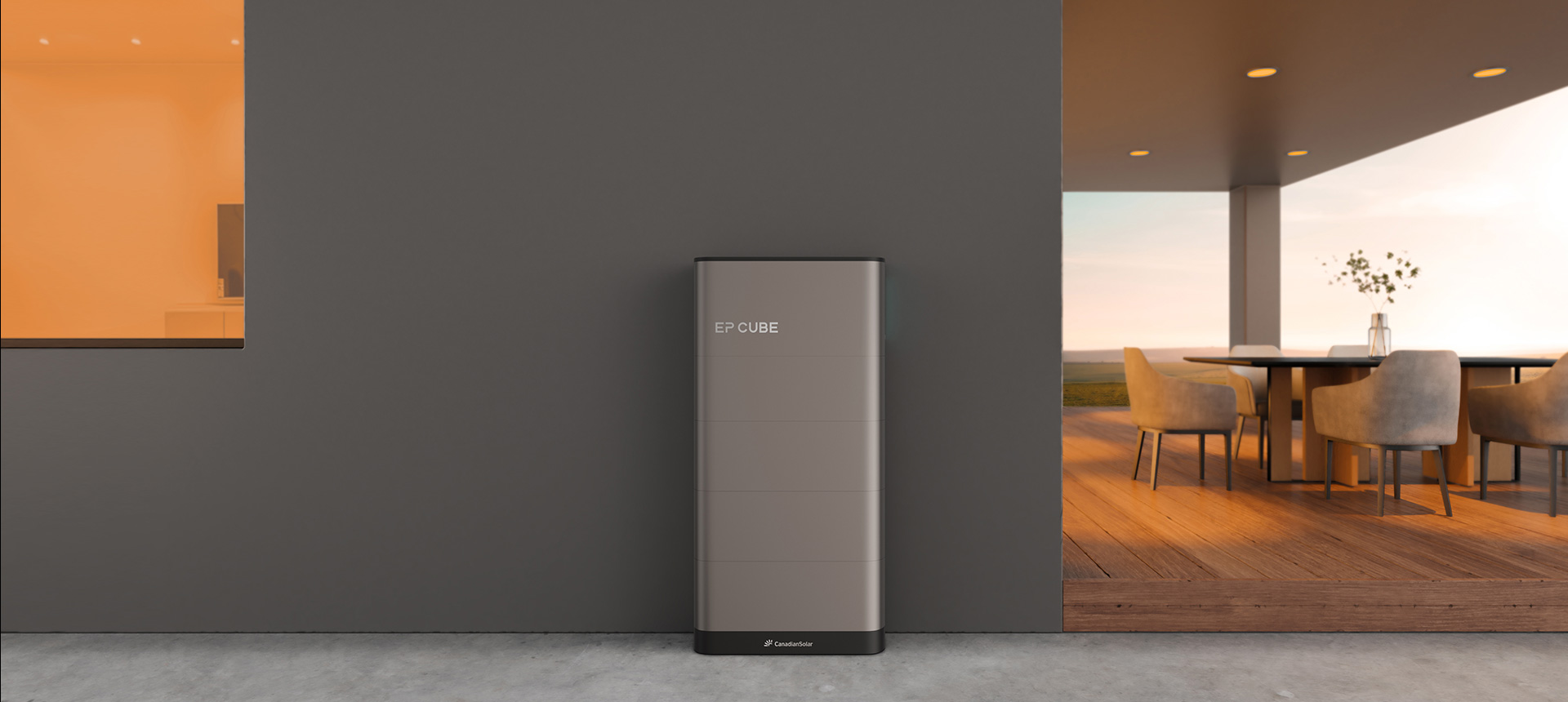

EP Cube detects grid outages and always stays prepared, providing your home with power backup. High-power electrical appliances will function normally even if the grid goes down.

/uploads/image/20230210/91e2d3fc55dd426f24a1df02d658fff5.jpg,/uploads/image/20230210/2dfc0a78ec9d9dcb5d5dbe32aa23ad45.jpg

Compatibility

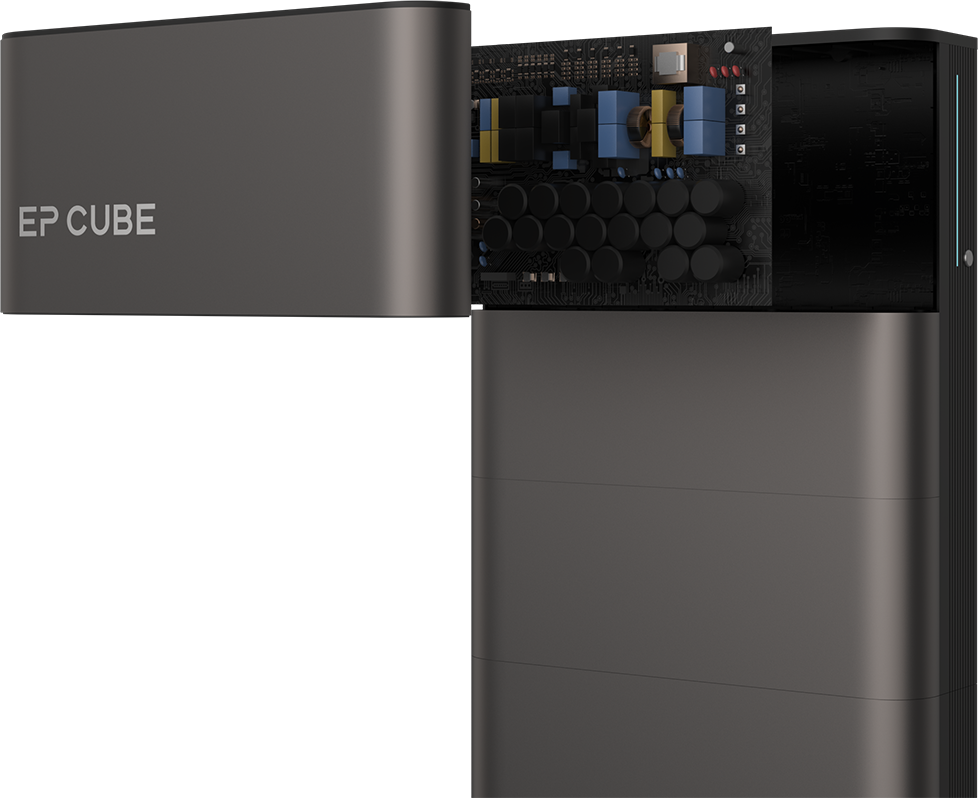

The EP Cube hybrid inverter has 2 MPPT inputs that can take in up to 16A DC-coupled PV each. Besides the AC input from the existing PV system and the grid; it also supports the functionality of maximum 7.4kW EV chargers*.

Product Specs Sales Info

Intelligent
management

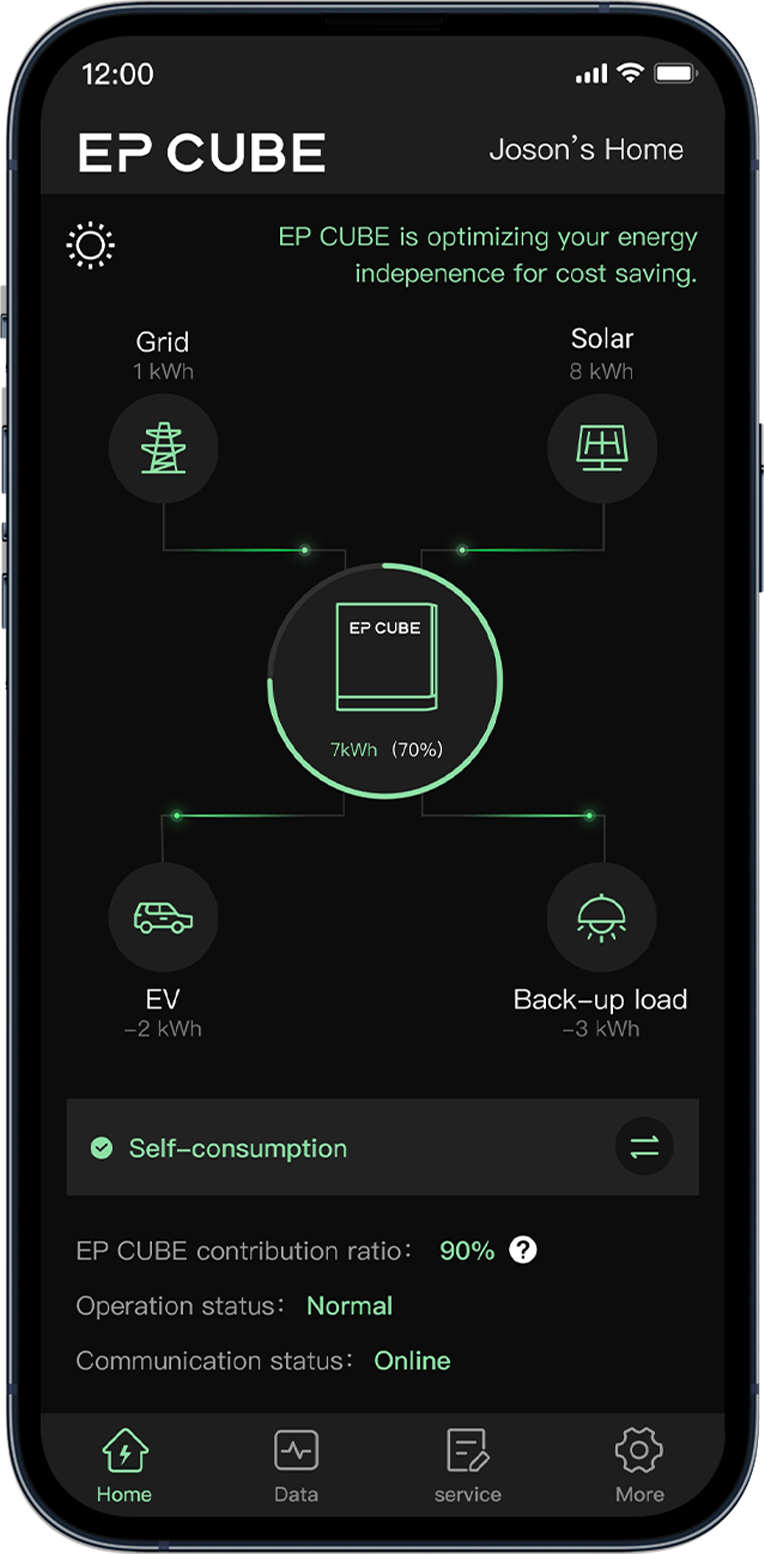

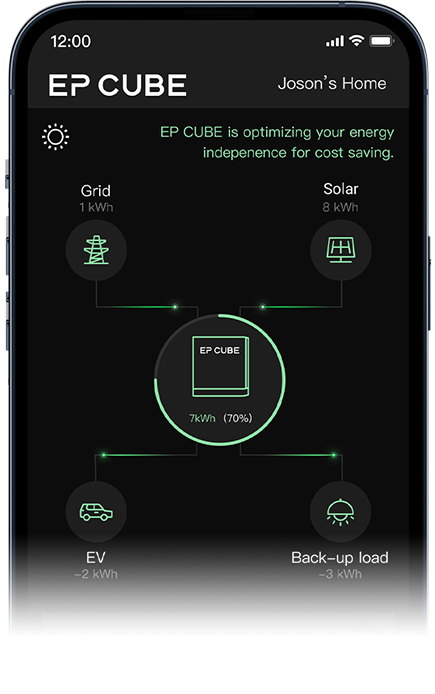

EP Cube can be connected to WiFi and Ethernet. With EP Cube App, you can easily monitor generation, storage and consumption of residential electricity in real time; it gives a heads-up before extreme weather sets in; in addition, it also allows OTA(Over-the-Air) firmware upgrade.

Learn more

Tech Specs

See more details

Inverter

Maximum Power Point Trackers: 2
Maximum current per MPPT : 16A
Total energy

6.6 kWh / 9.9 kWh / 13.3 kWh / 16.6 kWh / 19.9 kWh
On-grid power

Maximum continuous power :
no sun 3kW / 5 kW / 6k W / 6 kW / 6 kW
full sun 6 kW
Additional data

Dimensions (W*H*D) :
600*1006*243mm / 600*1221*243mm / 600*1436*243mm /
600*1651*243mm / 600*1866*243mm
Weight

111.5 kg / 146.5 kg / 181.5 kg / 216.5 kg / 251.5 kg
